Using Lambda's Managed Kubernetes#

Introduction#

This guide walks you through getting started with Lambda's Managed Kubernetes (MK8s) on a 1-Click Cluster (1CC).

MK8s provides a Kubernetes environment with GPU and InfiniBand (RDMA) support, and shared persistent storage across all nodes in a 1CC. Clusters are preconfigured so you can deploy workloads without additional setup.

In this guide, you'll learn how to:

  • Access MK8s using kubectl.
  • Grant access to additional users.
  • Organize workloads using namespaces.
  • Deploy and manage applications.
  • Expose services using Ingresses.
  • Use shared and node-local persistent storage.

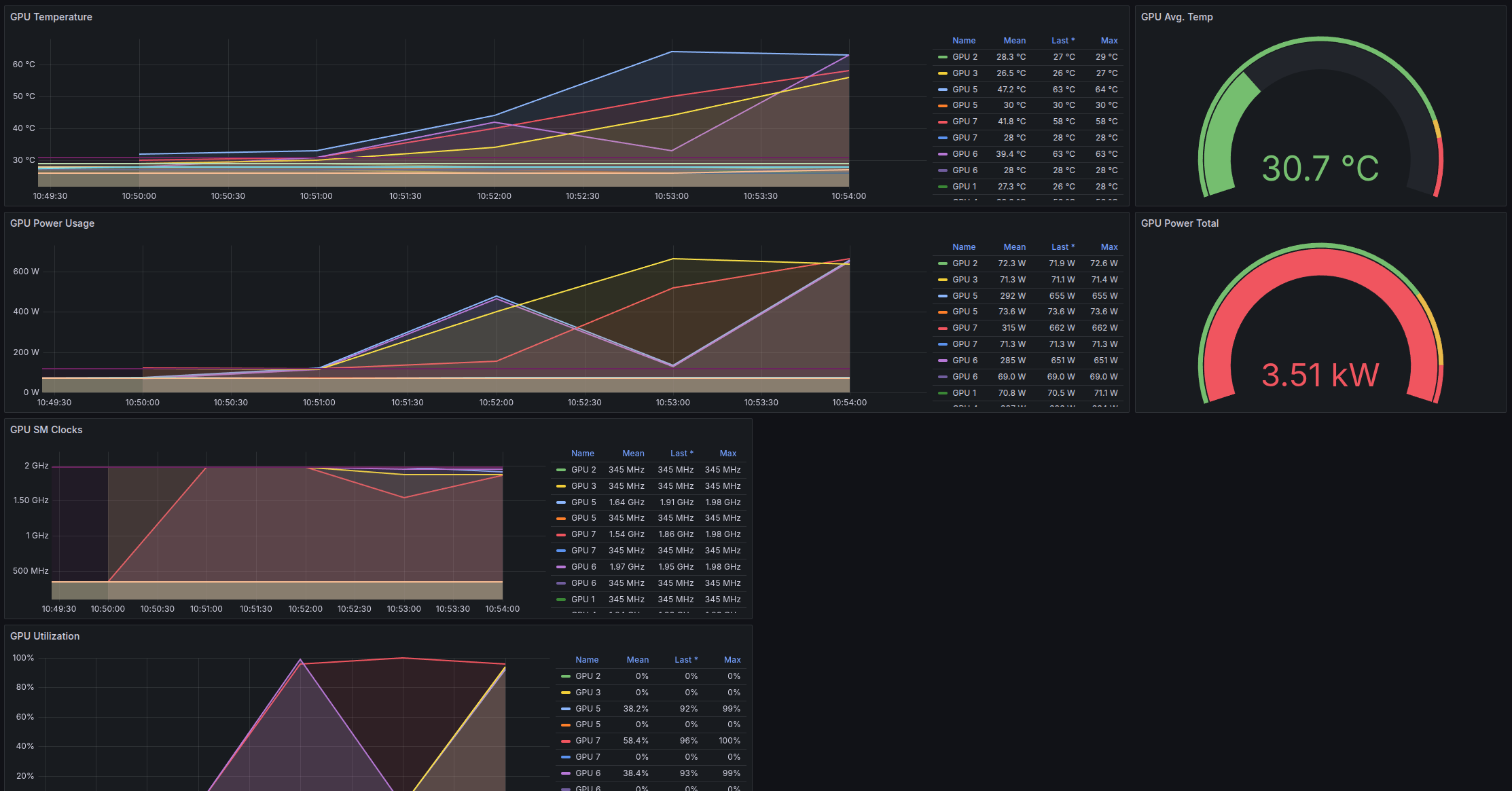

  • Monitor GPU usage with the NVIDIA DCGM Grafana dashboard.

This guide includes two examples:

In the first, you'll deploy a vLLM server to serve the Nous Research Hermes 4 model. You'll:

  1. Create a namespace for the examples.
  2. Add a PersistentVolumeClaim (PVC) to cache model downloads.
  3. Deploy the vLLM server.
  4. Expose it with a Service.
  5. Configure an Ingress to make it accessible externally.

In the second example, you'll evaluate the multiplication-solving accuracy of the DeepSeek R1 Distill Qwen 7B model using vLLM. You'll:

  1. Run a batch job that performs the evaluation.
  2. Monitor GPU utilization during the run.

Prerequisites#

You need the Kubernetes command-line tool, kubectl, to interact with MK8s. Refer to the Kubernetes documentation for installation instructions.

You also need the kubelogin plugin for kubectl to authenticate to MK8s. Refer to the kubelogin README for installation instructions.

Accessing MK8s#

To access MK8s, you need to:

  • Configure firewall rules to allow connections to MK8s.
  • Configure kubectl to use the provided kubeconfig file.
  • Authenticate to MK8s using your Lambda Cloud account.

Configure firewall rules#

To access MK8s, you must first create firewall rules for the MK8s API server and Ingress Controller:

  1. Navigate to the Global rules tab on the Firewall settings page in the Lambda Cloud console.

  2. In the Rules section, click Edit rules to begin creating a rule.

  3. Click Add rule, then set up the following rule:

    • Type: Custom TCP
    • Protocol: TCP
    • Port range: 6443
    • Source: 0.0.0.0/0
    • Description: MK8s API server

  4. Click Add rule again, then set up the following rule:

    • Type: Custom TCP
    • Protocol: TCP
    • Port range: 443
    • Source: 0.0.0.0/0
    • Description: MK8s Ingress Controller

  5. Click Update firewall rules.

Configure kubectl#

You're provided with a kubeconfig file when MK8s is provisioned. You need to set up kubectl to use this kubeconfig file:

  1. Save the file to ~/.kube/config. Alternatively, set the KUBECONFIG environment variable to the path of the file.

  2. (Optional) Restrict access to the file:

    chmod 600 ~/.kube/config

Authenticate to MK8s#

  1. Run:

    kubectl get nodes

    A tab or new window opens in your default web browser, and you're prompted to log in to your Lambda Cloud account.

  2. Log in to your Lambda Cloud account.

    You're prompted to authorize Lambda Managed Kubernetes to access your Lambda account.

  3. Click Accept to authenticate to MK8s.

In your terminal, you should see output similar to:

NAME                                                              STATUS   ROLES                       AGE   VERSION
mk8s-yns66blqnvvvffjc-mk8s--worker--gpu-8x-h100-sxm5gdr-cgkn46g   Ready    <none>                      17d   v1.32.3+rke2r1
mk8s-yns66blqnvvvffjc-mk8s--worker--gpu-8x-h100-sxm5gdr-cgwx5c7   Ready    <none>                      18d   v1.32.3+rke2r1
mk8s-yns66blqnvvvffjc-ndcr6-728sh                                 Ready    control-plane,etcd,master   18d   v1.32.3+rke2r1
mk8s-yns66blqnvvvffjc-ndcr6-p25c9                                 Ready    control-plane,etcd,master   18d   v1.32.3+rke2r1
mk8s-yns66blqnvvvffjc-ndcr6-vvrxc                                 Ready    control-plane,etcd,master   18d   v1.32.3+rke2r1

Grant access to additional users#

You can grant access to MK8s to additional users by using the Teams feature.

Teammates with the Member role have an edit ClusterRole in MK8s, which allows read/write access to most objects in a namespace.

Teammates with the Admin role have a cluster-admin ClusterRole in MK8s, which allows full control over every resource in all namespaces.

See the Kubernetes documentation on user-facing ClusterRoles to learn more about the edit and cluster-admin ClusterRoles.

Creating a Pod with access to GPUs and InfiniBand (RDMA)#

Worker (GPU) nodes in MK8s are tainted to prevent non-GPU workloads from being scheduled on them by default. To run GPU-enabled or RDMA-enabled workloads on these nodes, your Pod spec must include the appropriate tolerations and resource requests.

To schedule a Pod on a GPU node using kubectl, include the following toleration in your Pod spec:

spec:
  tolerations:
    - key: "nvidia.com/gpu"
      operator: "Equal"
      value: "true"
      effect: "NoSchedule"

This toleration matches the taint applied to GPU nodes and allows the scheduler to place your Pod on them.

To allocate GPU resources to your container, specify them explicitly in the resources.limits section. For example, to request one GPU:

resources:
  limits:
    nvidia.com/gpu: "1"

If your container also requires InfiniBand (RDMA) support, you must request the RDMA device and include the following runtime configuration:

containers:
  - name: <CONTAINER-NAME>
    image: <CONTAINER-IMAGE>
    resources:
      limits:
        nvidia.com/gpu: "8"
        rdma/rdma_shared_device_a: "1"
        memory: 16Gi
      requests:
        nvidia.com/gpu: "8"
        rdma/rdma_shared_device_a: "1"
    volumeMounts:
      - name: dshm
        mountPath: /dev/shm
    securityContext:
      capabilities:
        add:
          - IPC_LOCK

volumes:
  - name: dshm
    emptyDir:
      medium: Memory
      sizeLimit: 16Gi

Note

Setting volumes.emptyDir.sizeLimit to 16Gi ensures that sufficient RAM-backed shared memory is available at /dev/shm for RDMA and communication libraries such as NCCL. (See, for example, NVIDIA's documentation on troubleshooting NCCL shared memory issues.)

Note that if no memory limit is set on a container using a /dev/shm mount, the cluster will reject the pod with an error: ValidatingAdmissionPolicy 'workload-policy.lambda.com' with binding 'workload-policy-binding.lambda.com' denied request: (requireDevShmMemoryLimit) Pods are not allowed to have containers that mount /dev/shm and do not configure any memory resource limits (e.g. spec.containers[*].resources.limits.memory=1536G).

Defining a memory limit ensures the kernel memory allocator can function efficiently, helping maintain overall node stability.

Creating Ingresses to access services#

MK8s comes preconfigured with the NGINX Ingress Controller and ExternalDNS. MK8s includes a pre-provisioned wildcard TLS certificate for *.<CLUSTER-ZONE>.k8s.lambda.ai, which is used by the Ingress Controller by default. This setup allows you to expose services securely via public URLs in the format https://<SERVICE>.<CLUSTER-ZONE>.k8s.lambda.ai.

Obtain the CLUSTER-ZONE#

To obtain the <CLUSTER-ZONE> using kubectl:

kubectl get -n kube-system configmap cluster-configuration -o jsonpath='{.data.zone}'

Create an Ingress#

To create an Ingress:

  1. Create an Ingress manifest. For example:

    apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: <NAME>
  namespace: <NAMESPACE>
spec:
  ingressClassName: nginx-public
  rules:
    - host: <SERVICE>.<CLUSTER-ZONE>.k8s.lambda.ai
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: <SERVICE>
                port:
                  name: http

  tls:
    - hosts:
        - <SERVICE>.<CLUSTER-ZONE>.k8s.lambda.ai

  2. Apply the Ingress manifest. Replace <INGRESS-MANIFEST> with the path to your manifest file:

    kubectl apply -f <INGRESS-MANIFEST>

    Example output:

    ingress.networking.k8s.io/vllm-ingress created

  3. Verify the Ingress was created. Replace <NAMESPACE> and <NAME> with your values:

    kubectl describe -n <NAMESPACE> ingress <NAME>

    You should see output similar to:

    Name:             vllm-ingress
Labels:           <none>
Namespace:        mk8s-docs-examples
Address:          192.222.48.194,192.222.48.250,192.222.48.39
Ingress Class:    nginx-public
Default backend:  <default>
TLS:
  SNI routes vllm.mk8s-yns66blqnvvvffjc.us-east.k8s.lambda.ai
Rules:
  Host                                              Path  Backends
  ----                                              ----  --------
  vllm.mk8s-yns66blqnvvvffjc.us-east.k8s.lambda.ai
                                                    /   vllm-service:http (10.42.2.16:8000)
Annotations:                                        <none>
Events:
  Type    Reason  Age                From                      Message
  ----    ------  ----               ----                      -------
  Normal  Sync    22s (x2 over 55s)  nginx-ingress-controller  Scheduled for sync
  Normal  Sync    22s (x2 over 55s)  nginx-ingress-controller  Scheduled for sync
  Normal  Sync    22s (x2 over 55s)  nginx-ingress-controller  Scheduled for sync

Shared and node-local persistent storage#

MK8s provides two StorageClasses for persistent storage:

  • lambda-shared: Shared storage backed by a Lambda Filesystem on a network-attached storage cluster. It's accessible from all nodes and provides robust, durable storage. The Lambda Filesystem can also be accessed externally via the Lambda S3 Adapter.

  • lambda-local: Local NVMe-backed storage on the node. It's fast and useful for scratch space but isn't accessible from other nodes. Data is lost if the node or NVMe drive fails.

These StorageClasses let you persist data across pod restarts or rescheduling. However, only lambda-shared persists across node failures.

To use persistent storage in MK8s, workloads must request a PersistentVolumeClaim (PVC). You can specify the size, access mode, and StorageClass in the PVC. By default, the lambda-shared StorageClass is used.

Volumes created from PVCs bind immediately, rather than waiting for a pod to consume them. This ensures that volume provisioning and scheduling happen up front.

Persistent storage is useful for:

  • Saving model checkpoints.
  • Storing datasets.
  • Writing logs shared across workloads.

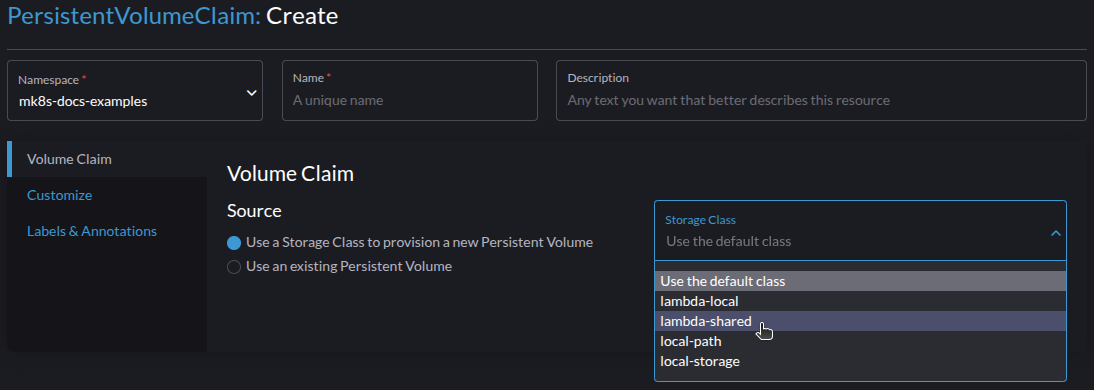

To create and manage PVCs:

  1. Create a PVC manifest file. For example, to create a PVC using the lambda-shared storage class and a capacity of 128 GiB:

    apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: <NAME>
  namespace: <NAMESPACE>
spec:
  storageClassName: lambda-shared
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 128Gi

  2. Apply the manifest:

    kubectl apply -f <PVC-MANIFEST>

    Replace <PVC-MANIFEST> with the path to your YAML file.

  3. Verify that the PVC was created:

    kubectl get -n <NAMESPACE> pvc

    Example output:

    NAME                STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
huggingface-cache   Bound    pvc-972f79ff-7afd-42ee-897b-e18f0788a620   128Gi      RWX            lambda-shared   <unset>                 3d9h

Tip

If your container only needs to read data from a PVC, such as loading a static dataset or pretrained model weights, you can mount the volume as read-only to prevent accidental writes:

spec:
  containers:
    - name: <CONTAINER-NAME>
      volumeMounts:
        - name: <VOLUME-NAME>
          mountPath: <MOUNT-PATH>
          readOnly: true
  volumes:
    - name: <VOLUME-NAME>
      persistentVolumeClaim:
        claimName: <PVC-NAME>

Example 1: Deploy a vLLM server to serve Hermes 4#

In this example, you'll deploy a vLLM server in MK8s to serve Nous Research's Hermes 4 LLM.

Before you begin, make sure you've set up kubectl access to the MK8s cluster.

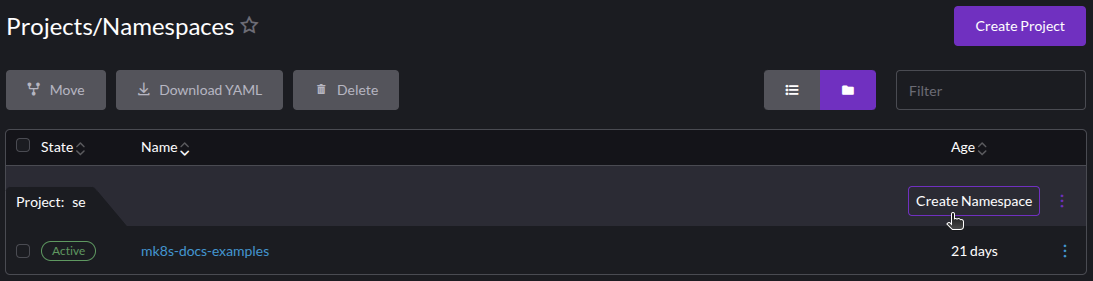

Create a Namespace to group resources#

First, create a namespace for this example and the following example:

  • Run:

    kubectl create namespace mk8s-docs-examples

    Expected output:

    namespace/mk8s-docs-examples created

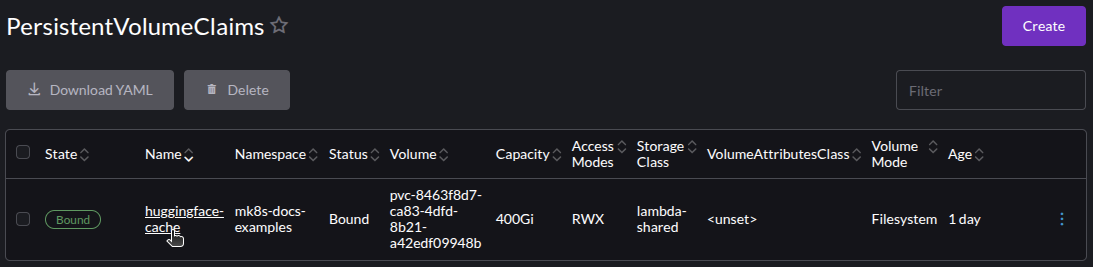

Create a PVC to cache downloaded models#

Next, create a PVC to cache model files downloaded from Hugging Face:

  1. Apply the huggingface-cache.yaml PVC manifest:

    kubectl apply -f https://docs.lambda.ai/assets/code/huggingface-cache.yaml

    Expected output:

    persistentvolumeclaim/huggingface-cache created

  2. Confirm the PVC was created:

    kubectl get -n mk8s-docs-examples pvc

    Expected output:

    NAME                STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS    VOLUMEATTRIBUTESCLASS   AGE
huggingface-cache   Bound    pvc-972f79ff-7afd-42ee-897b-e18f0788a620   128Gi      RWX            lambda-shared   <unset>                 20s

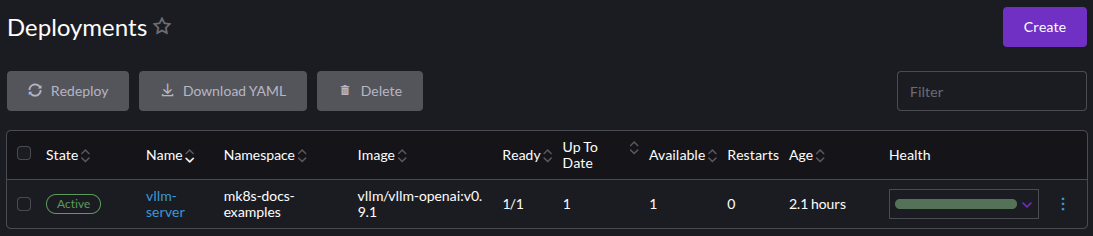

Deploy a vLLM server in the cluster#

  1. Apply the vllm-deployment-lks.yaml manifest:

    kubectl apply -f https://docs.lambda.ai/assets/code/vllm-deployment-lks.yaml

    Expected output:

    deployment.apps/vllm-server created

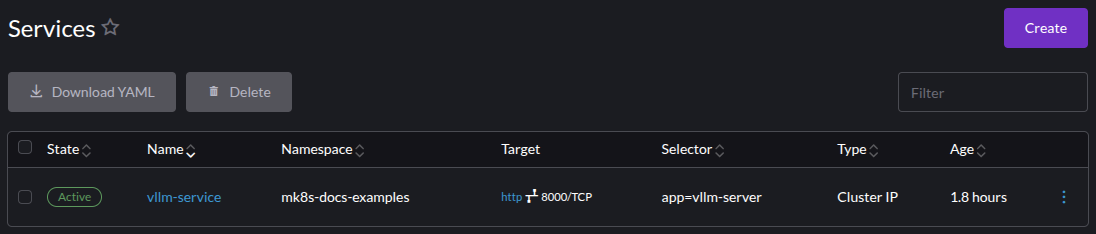

Create a Service to expose the vLLM server#

  1. Apply the vllm-service.yaml manifest:

    kubectl apply -f https://docs.lambda.ai/assets/code/vllm-service.yaml

    Expected output:

    service/vllm-service created

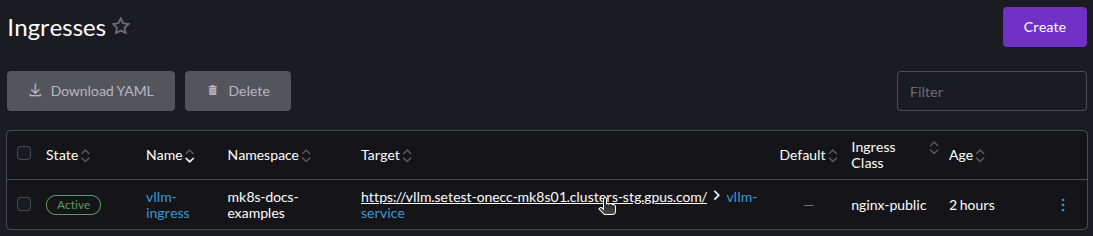

Create the Ingress to expose the vLLM service publicly#

To expose the vLLM server over the internet:

  1. Download the vllm-ingress-lks.yaml manifest file.

  2. In the manifest file, replace <CLUSTER-ZONE> with your actual cluster zone.

  3. Apply the manifest:

    kubectl apply -f vllm-ingress-lks.yaml

  4. Confirm the Ingress was created:

    kubectl get -n mk8s-docs-examples ing
    Expected output:

    NAME           CLASS          HOSTS                                              ADDRESS                                       PORTS     AGE
vllm-ingress   nginx-public   vllm.mk8s-yns66blqnvvvffjc.us-east.k8s.lambda.ai   192.222.48.194,192.222.48.250,192.222.48.39   80, 443   2m12s

MK8s will automatically create a DNS record and obtain a TLS certificate, enabling secure access to the vLLM service.

Note

It can take up to an hour for the DNS record to propagate to your DNS servers. To check the propagation status, run:

dig <HOSTNAME> +short

If the record has propagated, you'll see three IP addresses. These are the IPs of your 1CC head nodes.

Submit a prompt to the vLLM server#

  • To verify that the vLLM server is working, submit a prompt using curl. Replace <CLUSTER-ZONE> with the value you obtained from the kubectl get configmap cluster-configuration command.

    curl -X POST https://vllm.<CLUSTER-ZONE>.k8s.lambda.ai/v1/completions \
  -H "Content-Type: application/json" \
  -d "{
    \"prompt\": \"What is the name of the capital of France?\",
    \"model\": \"NousResearch/Hermes-4-14B\",
    \"temperature\": 0.0,
    \"max_tokens\": 100
  }"

Clean up the example resources#

  • To delete the Ingress, Service, and Deployment created in this example:

    kubectl delete -f https://docs.lambda.ai/assets/code/vllm-ingress-lks.yaml
kubectl delete -f https://docs.lambda.ai/assets/code/vllm-service.yaml
kubectl delete -f https://docs.lambda.ai/assets/code/vllm-deployment-lks.yaml

Note

If you don't plan to continue to the next example or no longer need the cached model files, you can also delete the PVC using:

kubectl delete -f https://docs.lambda.ai/assets/code/huggingface-cache.yaml

Example 2: Evaluate multiplication-solving abilities of the DeepSeek R1 Distill Qwen 7B model#

This example assumes you've already completed the following steps in the previous example:

  • Set up kubectl access to your MK8s cluster.
  • Created the mk8s-docs-examples namespace.
  • Created the huggingface-cache PVC.

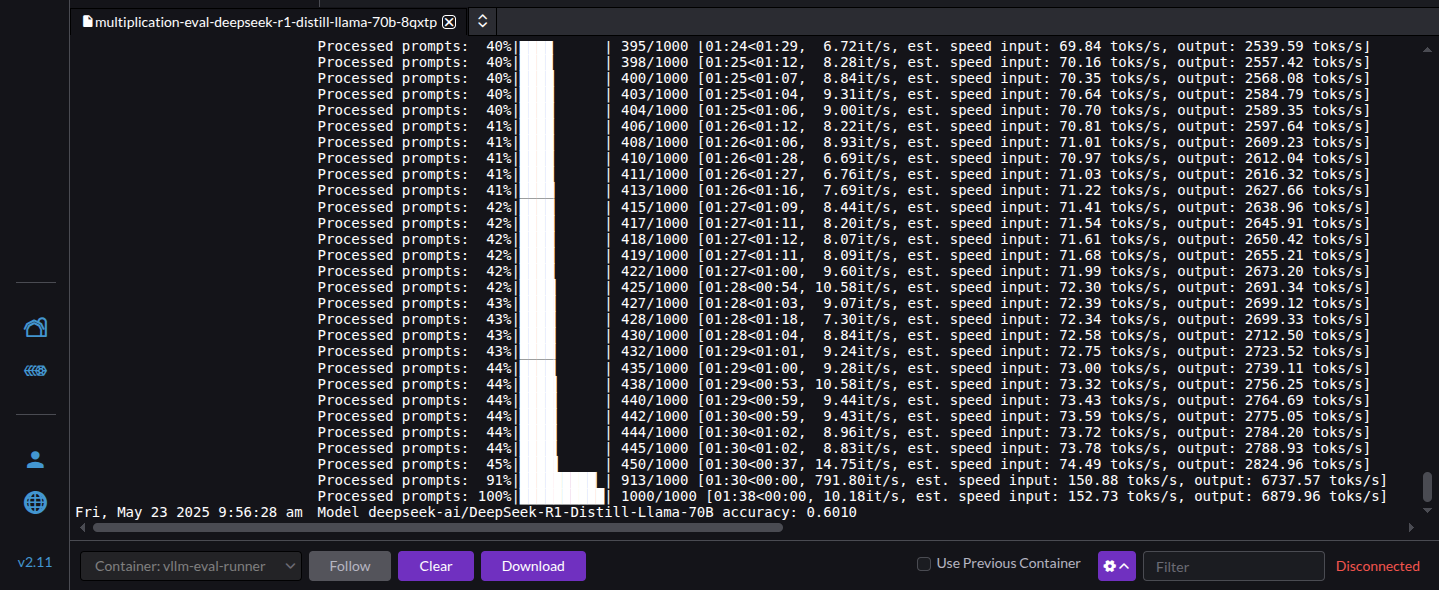

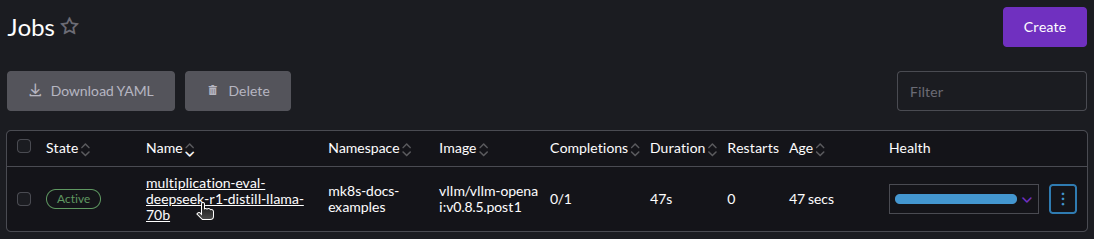

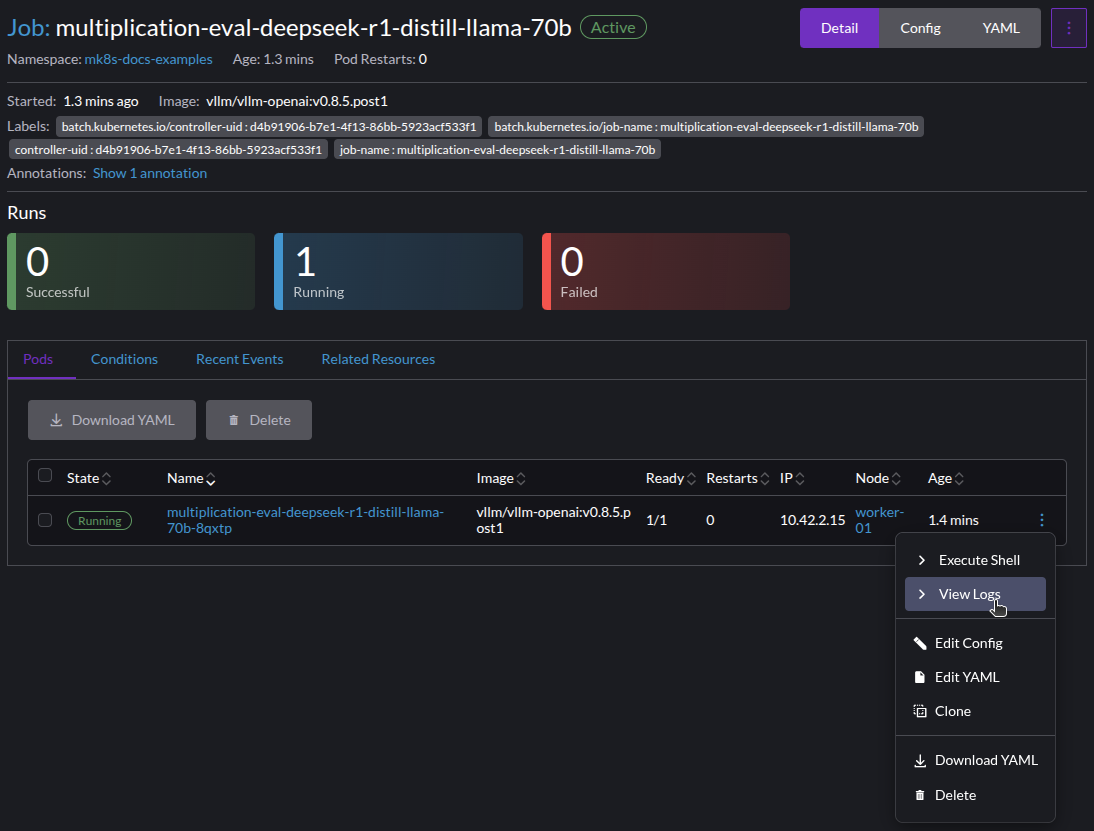

Run a Job to evaluate the multiplication-solving accuracy of the model#

  • Apply the multiplication-eval-deepseek-r1-distilll-qwen-7b.yaml manifest:

    kubectl apply -f https://docs.lambda.ai/assets/code/multiplication-eval-deepseek-r1-distilll-qwen-7b.yaml

    Expected output:

    job.batch/multiplication-eval-deepseek-r1-distilll-qwen-7b created

View the Job logs#

To follow the Job logs as the job runs:

kubectl logs -f jobs/multiplication-eval-deepseek-r1-distilll-qwen-7b

You should see output from vLLM as the job runs.

When the job finishes, you should see a line displaying the accuracy of the job:

Processed prompts: 100%|██████████| 1000/1000 [00:10<00:00, 97.89it/s, est. speed input: 1652.09 toks/s, output: 28255.96 toks/s]
Model deepseek-ai/DeepSeek-R1-Distill-Qwen-7B accuracy: 0.8900

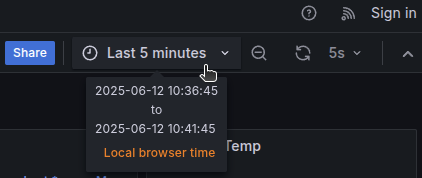

Monitor 1CC utilization during evaluation#

To monitor 1CC utilization as the evaluation Job runs:

  1. Navigate to https://grafana.<CLUSTER-ZONE>.k8s.lambda.ai. Replace <CLUSTER-ZONE> with the actual cluster zone of your MK8s cluster.

  2. At the login prompt, click Sign in with lambda.

  3. In the left nav, click Dashboards.

  4. Click NVIDIA DCGM Exporter Dashboard.

Clean up the example resources#

The Job is configured to delete itself five minutes after it completes. If you want to delete it immediately, run:

kubectl delete -f https://docs.lambda.ai/assets/code/multiplication-eval-deepseek-r1-distilll-qwen-7b.yaml

If you're finished with the examples and no longer need the cached model data, you can also delete the huggingface-cache PVC:

kubectl delete -f https://docs.lambda.ai/assets/code/huggingface-cache.yaml

Next steps#
